Aluminiumskøler
Frostbite : FB301
Varenummer: FRBFB301
* 100 Percent TIG Welded Seams * 1 Year Limited Warranty * Aircraft Quality Aluminum Core/Fittings/Tanks * Billet Aluminum Filler Neck And OEM Brass Petcock * More Cooling Fins Per Inch For More Efficient Cooling * Custom Frostbite High Performance 16 lb. Radiator Cap * Polished Top And Tanks For Custom Show Appearance * 3-Row Supporting Applications w/600+ Horsepower * Flow Style Is Dual Pass * Designed To Maximize Cooling Efficiency

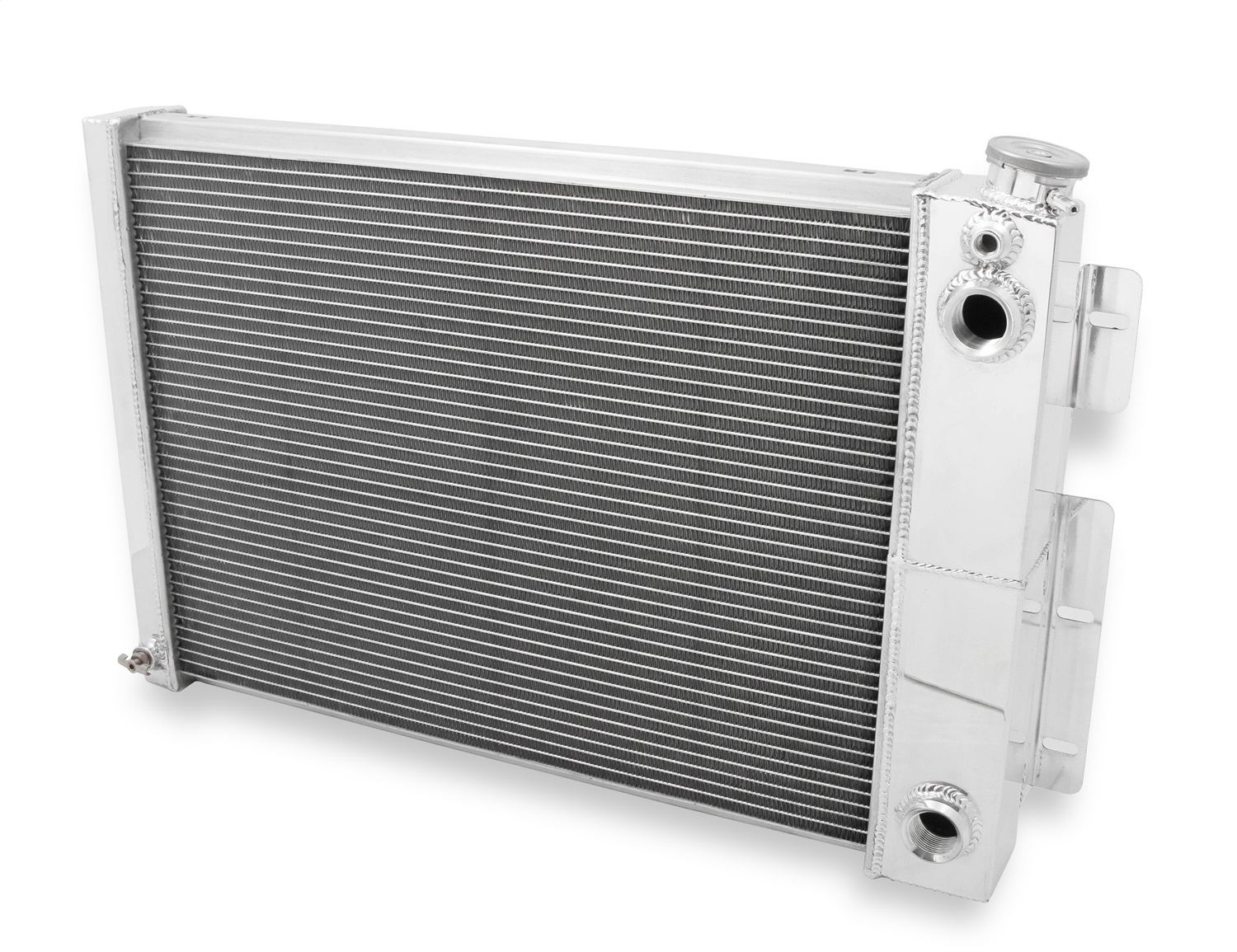

Aluminum Radiator; 3 Row; AN Bungs Inlet/Outlet; 18 1/2 x 27 1/2 in. Overall; Flange Mount; For Use w/LS Engine Swap 4.7/5.3/6.0/6.2/7.0L;
- Cooling Row Diameter: 0.6875 in.
- Core Dimension: 17.000 in. x 23.000 in.
- Core Thickness: 2.200 in.
- Flow Style: Dual Pass
- Hose Location Inlet: Passenger
- Hose Location Outlet: Passenger
- Inlet Diameter: AN Bungs
- Inlet Size: AN Bungs
- Item Height: 18.500 in.
- Material: Aluminum
- Mount Type: Flanges
- Mounting: Flange Mount
- Outlet Diameter: AN Bungs
- Outlet size: AN Bungs
- Overall Dimension: 18.500 in. x 27.500 in.
- Overall Length: 27.500 in.
- Radiator Core Row Quantity: 3
- Steam Port Fitting Size: 0.025 in. NPT
- Transcooler Provision: No
- Width: 9.250 in.
- 205182:
- Height Inch: 18 - 19 Inch
- Width Inch: 27 - 28 Inch
